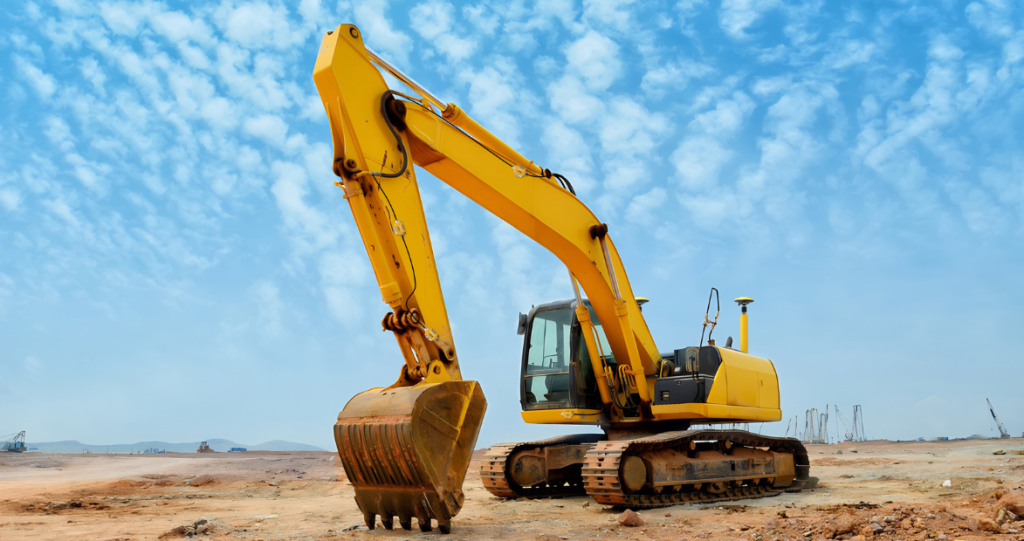

DC600 Guidance System For Excavator
Precise Guidance
Extended Durability
Easy To Expand
Intuitive Interface
Features
Precise Guidance
The integration of K8 GNSS high precision modules allows positioning accuracy within ±3cm, heading accuracy up to 0.2°, which meets the requirements of most construction projects.
Extended Durability
The DC600 is designed to withstand the harsh job sites. Dust and waterproof components, robust design, rugged sunlight-readable touchscreen can deal with various high-intensity shock and vibration industrial environments.
Easy to Expand
The system adopts a low-coupling modular structure design and provides a standard development interface, which can realize multi-sensor and controller expansion and be easily applied to other construction machinery, opening up more infinite possibilities.
Intuitive Interface
It supports CSV (output from SurveyMaster) and standard AutoCAD DXF design files. With intuitive software and user-defined configuration, drivers can complete projects quickly and accurately, even for those with less experience.

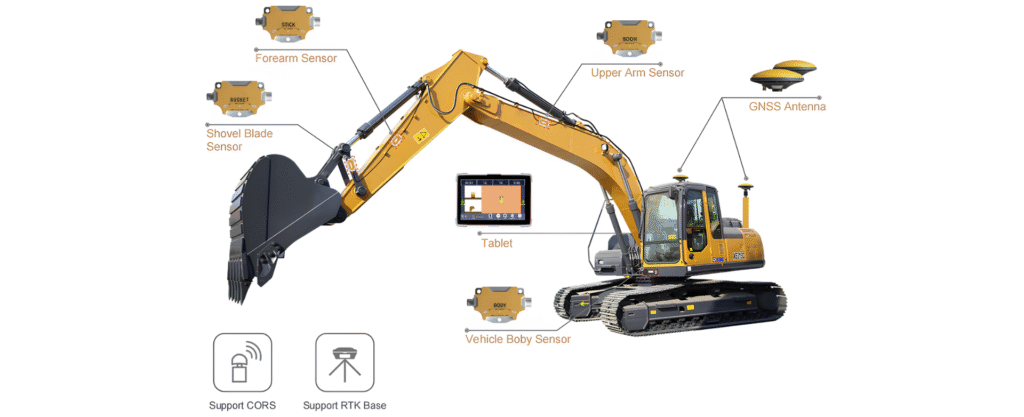

System Components
Advantage
GNSS Tablet
Aluminium magnesium alloy shell with IP66 dust- and waterproof; Sunlight readable capacitive screen; High resolution LCD display
Sensor
Biax gyroscope with great measuring range; Wide temperature operation (-40 ~ +85℃); IP67 rugged design, shock-resistance
RTK Base (Optional)
Portable design with up to 15km working range; Support full-constellation multi-frequency tracking with 1590 channels
GNSS Antenna
Full-constellation multi- frequency tracking stable signal; Quick and convenient to install
