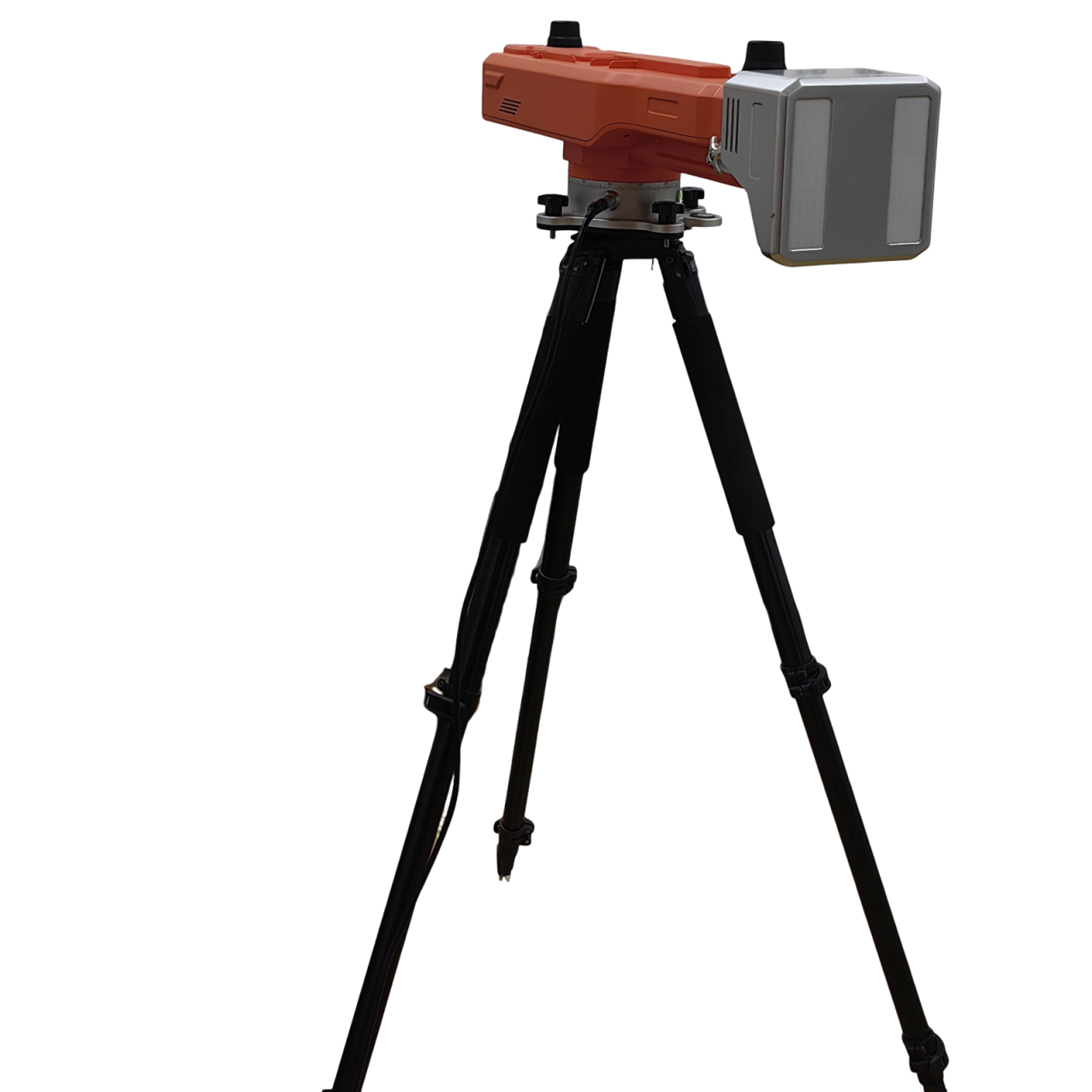

The Slope Monitoring Radar System is a professional device designed for high-precision real-time deformation monitoring and early warning of slopes. It is also ideal for landslide monitoring during emergency rescue operations. Utilizing non-contact measurement technology, the system achieves 0.1mm high-precision real-time measurements and provides 360° continuous online monitoring.
Features
- Highly Integrated Design: All-in-one unit with built-in data processing and communication modules, supporting long-term unattended monitoring.
- Omnidirectional Monitoring: Equipped with arc imaging and continuous-wave radar technology for 360° no-blind-spot monitoring.
- High-Precision Measurement: Millimeter-level accuracy with high data update rates, featuring adaptive atmospheric disturbance compensation without the need for reference points.
- Smart Operations: Supports system self-diagnosis and repair, device status reporting, automatic reconnection, local emergency operation, remote access, and data download.
- Versatile Deployment: Suitable for both fixed installation and portable deployment, meeting long-term monitoring and emergency response needs.
- Multi-Level Early Warning: Configurable warning thresholds with automatic alerts when exceeded.
- Flexible Communication: Supports 4G, WiFi, and wired network connections.
- 3D Terrain Integration: Allows import of 3D terrain data for combined deformation and slope analysis.
- Open Interface: Public communication protocol provided, supporting custom power, communication options, and secondary development.
Software
Radar Deformation Monitoring Safety Early Warning Platform
Early warning rule configuration
Early warning statistics
Application Scenarios
Tank Deformation Monitoring
Real-time monitoring of storage tank deformation helps detect abnormal structural changes early, preventing potential leakage and safety incidents.
Tunnel Monitoring
Ground-penetrating radar can be used to detect tunnel lining thickness, compaction quality, and voids behind the lining, ensuring safety during tunnel construction and operation.

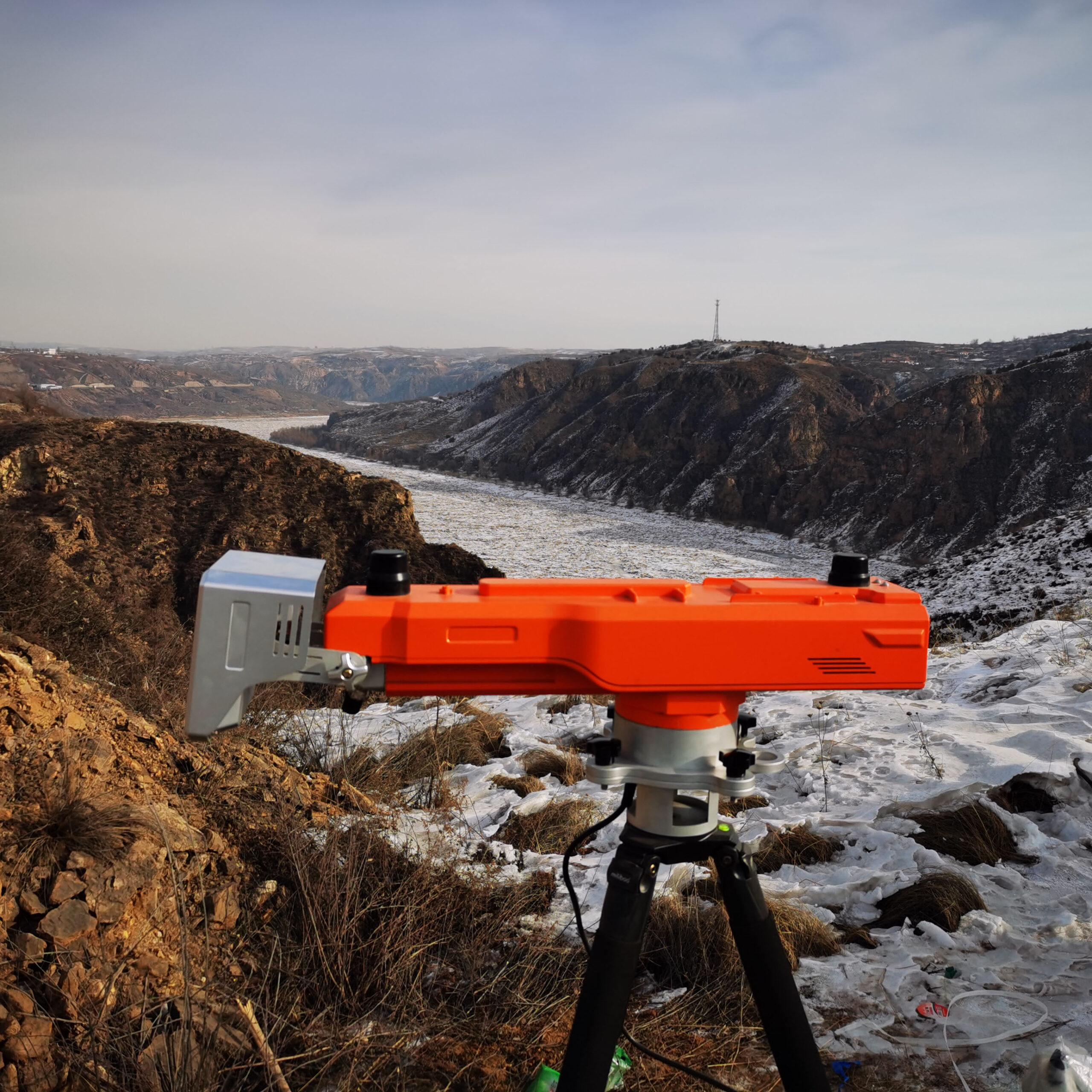

Landslide Monitoring
By continuously monitoring mountain slopes, the radar system can identify early signs of landslides and provide critical support for disaster prevention and mitigation decision-making.
Highway Slope Monitoring
Real-time monitoring of highway slopes helps detect displacement and deformation, ensuring the safe operation of road infrastructure.
Railway Slope Monitoring
Similar to highway slope monitoring, radar systems ensure slope stability along railway lines to guarantee safe train operations.

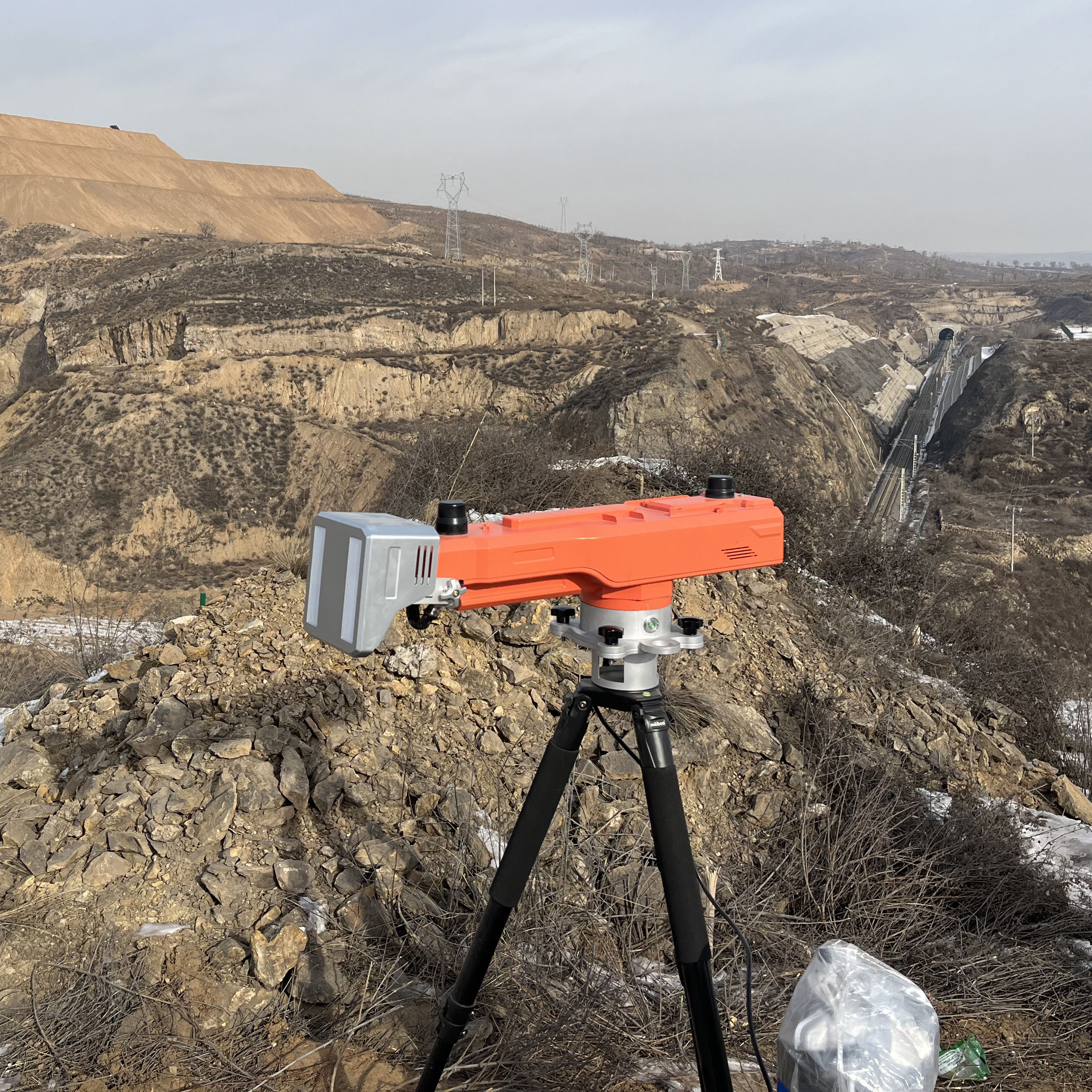

Mine Slope Monitoring

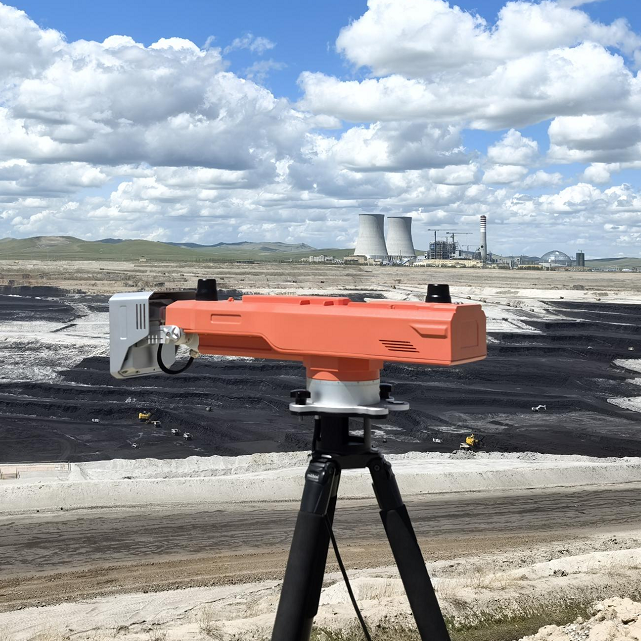

Monitoring slope stability during open-pit mining operations helps prevent collapses and ensures mine safety.
Technical Specifications
| Radar Performance | |
|---|---|
| Maximum Detection Range | ≥ 5 km |
| Deformation Measurement Accuracy | < 0.1 mm |
| Angular Resolution | 3 mrad |
| Distance Resolution | ≤ 0.15 m |
| Data Update Rate | ≤ 1 min |
| Maximum Azimuth Scan | 360° |
| Elevation (Pitch) Range | ±45° (total 45° adjustable) |
| Imaging & Software | |
| Deformation Imaging | Deformation field imaging with registration and fusion to imported 3D maps for 3D visualization |
| Algorithms & Compensation | Adaptive atmospheric disturbance compensation, millimeter-level deformation algorithms |
| Platform Integration | Open interface & public protocol, supports secondary development and custom integrations |
| Data & Communication | |
| Communication Modes | Flexible support: 4G / WiFi / Wired; provides 100 Mbps Ethernet interface |
| Wireless | 4G (LTE), WiFi |
| Network Interface | Nano SIM / cellular network support; 100 Mbps Ethernet |
| Data Output | Real-time data stream, supports remote access and data download |
| Power & Supply | |
| Power Options | UPS for emergency monitoring; supports solar power systems, generator (fuel engine) and mains electricity |
| Power Consumption | ≤ 40 W |
| Startup Time | < 5 minutes from unpacking to operational status |
| Protection & Environmental | |
| Protection Rating | IP66 |
| Operating Temperature | -45℃ to +65℃ |
| Optional Shelter | Radar shelter offers windproof and sandproof protection; AC or HVAC can be added per site conditions |
| Physical & Transport | |
| Weight | ≈ 10 kg |

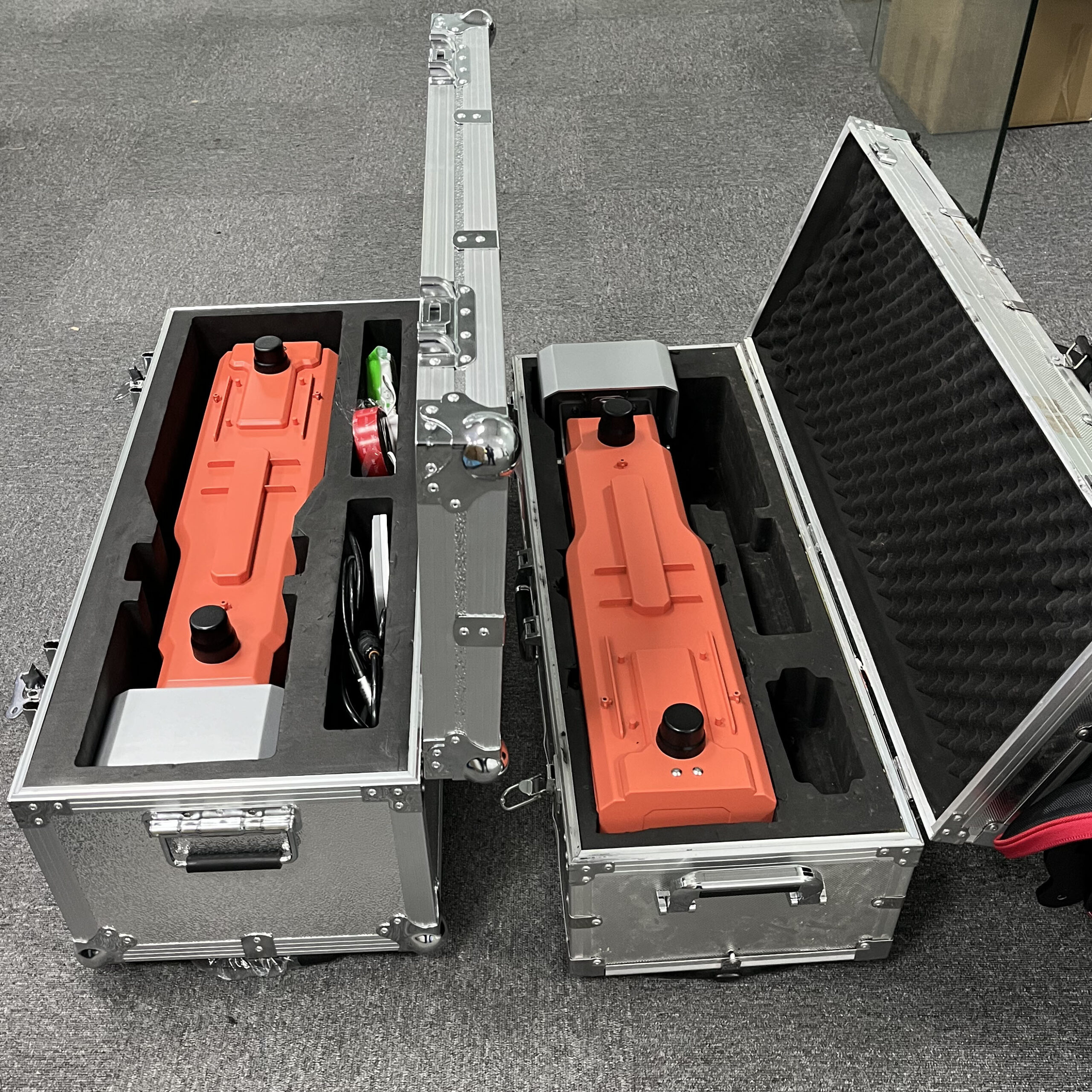

| Packaging | Single-box storage; portable for one person; compatible with airplane, high-speed train, car transport |
| Dimensions | (Depends on configuration) Compact, field-deployable design |
| Deployment & Typical Applications | |
| Deployment Modes | Fixed installation and detachable portable deployment for long-term monitoring and emergency response |
| Typical Applications | Open-pit mining, mountain landslide monitoring, highway & railway slope safety, tunnel & dam monitoring, tank deformation, bridge & building structural monitoring, rockfall early warning |
| Database & Platform | |
| Data Platform | Distributed processing & calculation platform with integrated radar processing and visualization |
| Time-Series Database | High-efficiency time-series database (e.g., TDEngine) for storage savings and fast queries |
| Other | |
| Pre-warning | Configurable warning thresholds with automatic alerting when exceeded |
| Maintenance & Support | System self-diagnosis and repair, device status reporting, automatic reconnection, local emergency operation and remote maintenance |
| Customization | Support for customized power & communication options and OEM/ODM requests |
